Move the board LEDs to the front without soldering

Concept

This is a way of "moving" the board indicator LEDs to the front without any soldering. The Duet WiFi board has a number of indicator LEDs for the heated bed, endstops, power, diag, status and more.

I think I found a simple, clean and fast way to "move" the LEDs to the front using cheap audio optical cable ($3 for 10m). So I ordered 20m of optical cable, started modeling some concept parts, and guess what? It worked!

Here is how I made this concept:

  • Buy 2 x 10m of optical cable on AliExpress for $6.
  • Download the optical LED cable mounts I modeled.

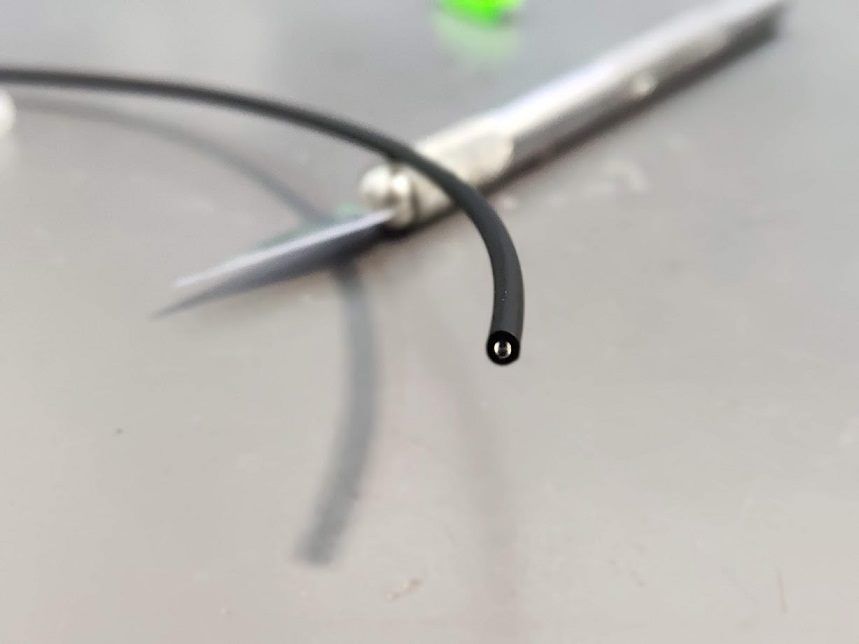

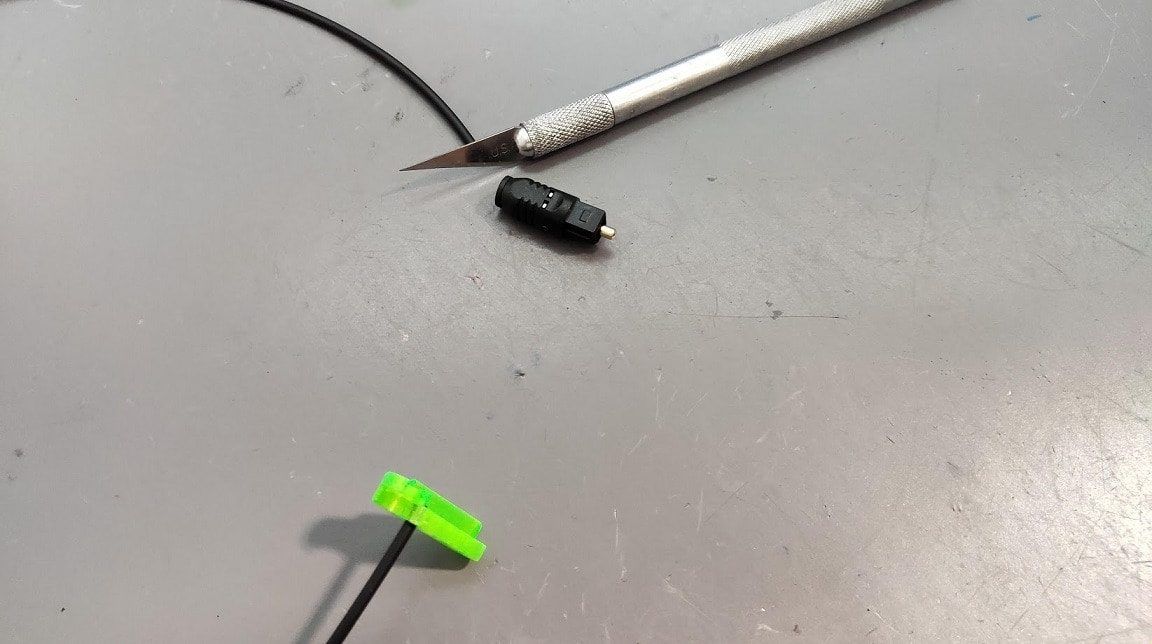

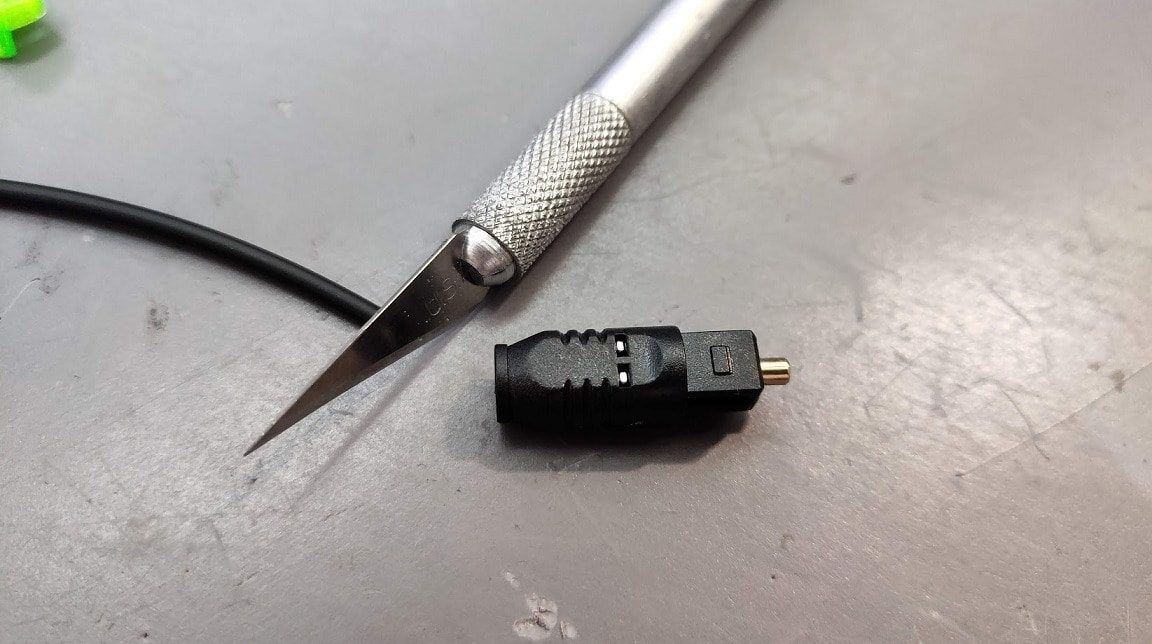

  • Use a sculpting knife to cleanly cut the optical cable into wires about 1.6m long.

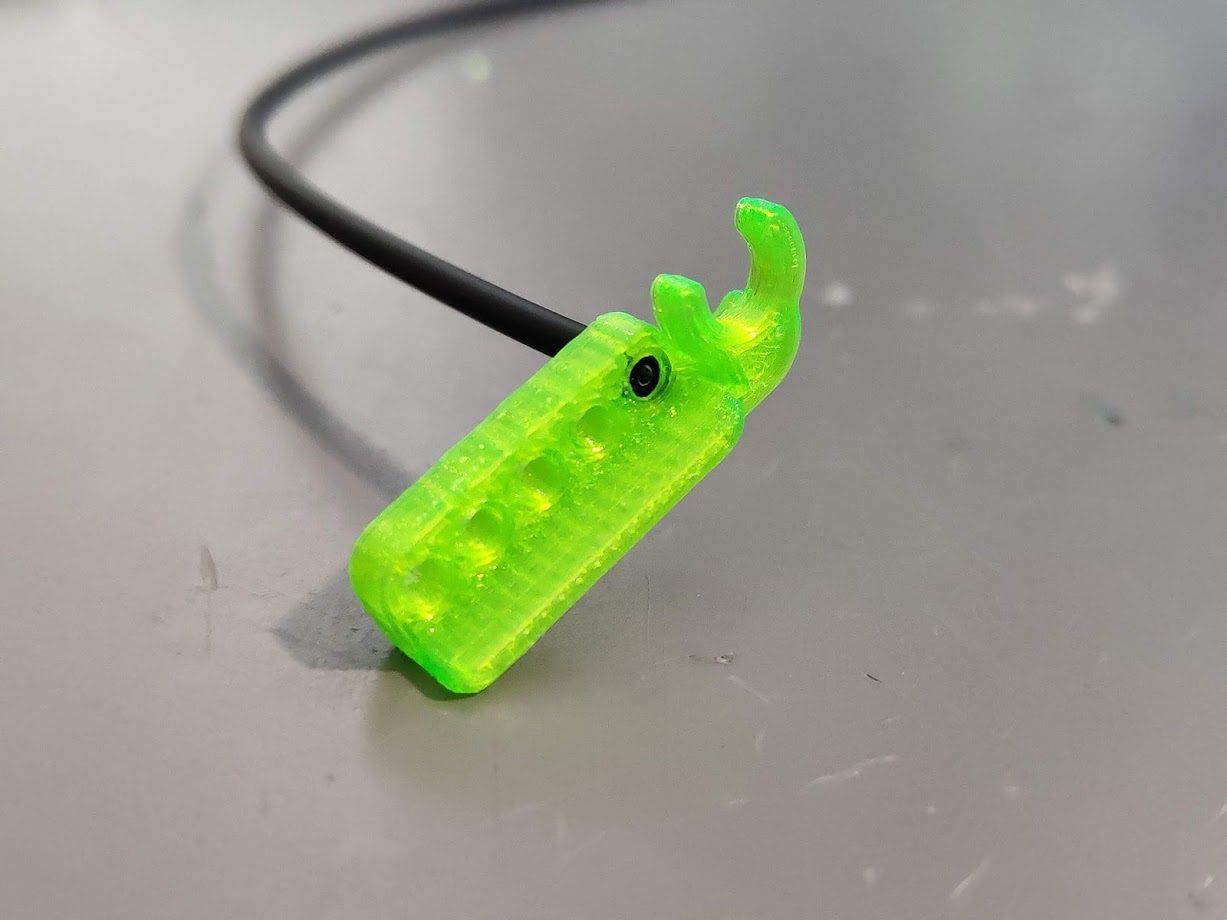

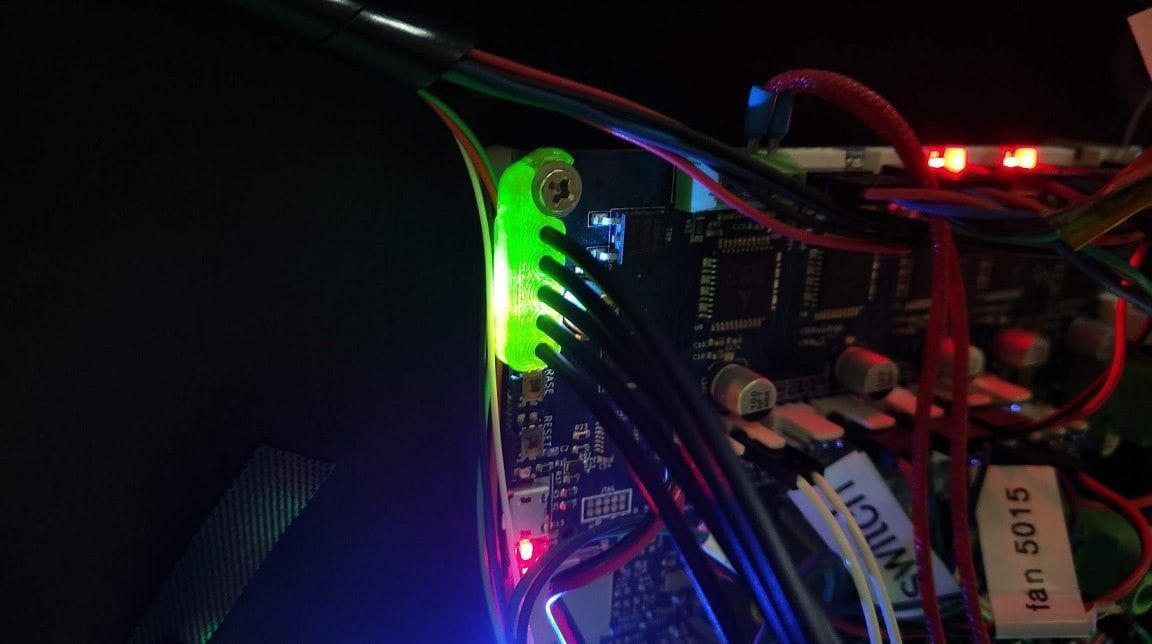

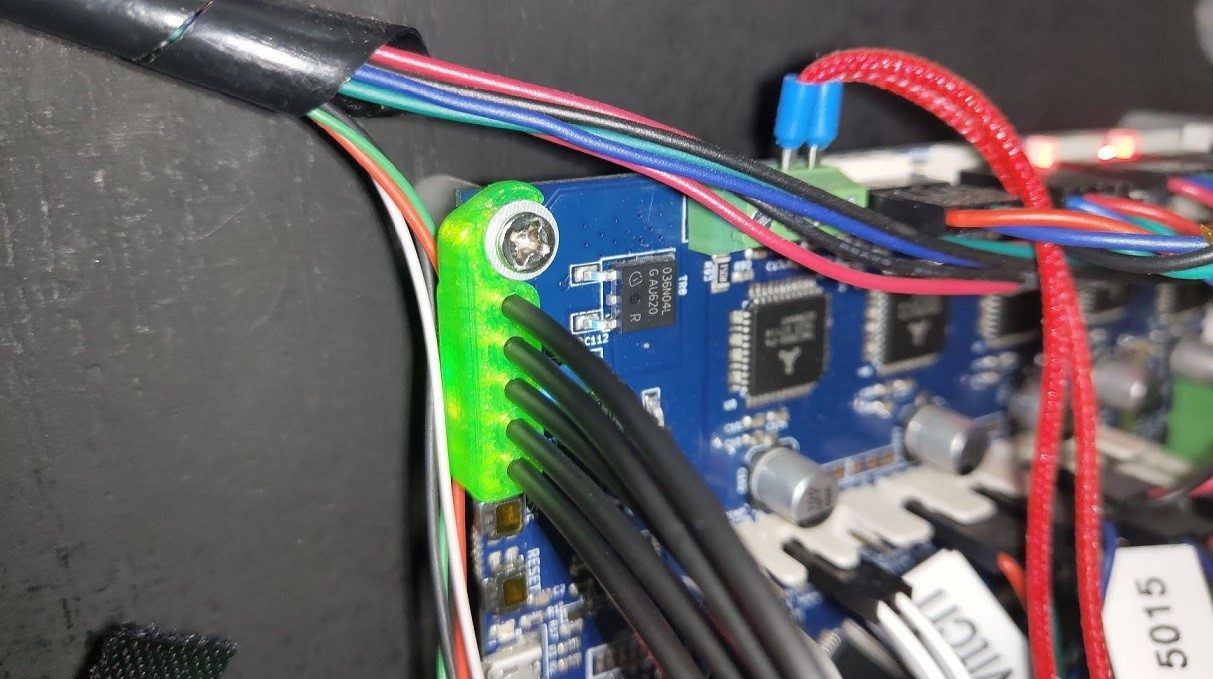

  • Mount the "optic cables board mount" part on the board, then slide 5 optical cables (about 1.6m long) into the mount.

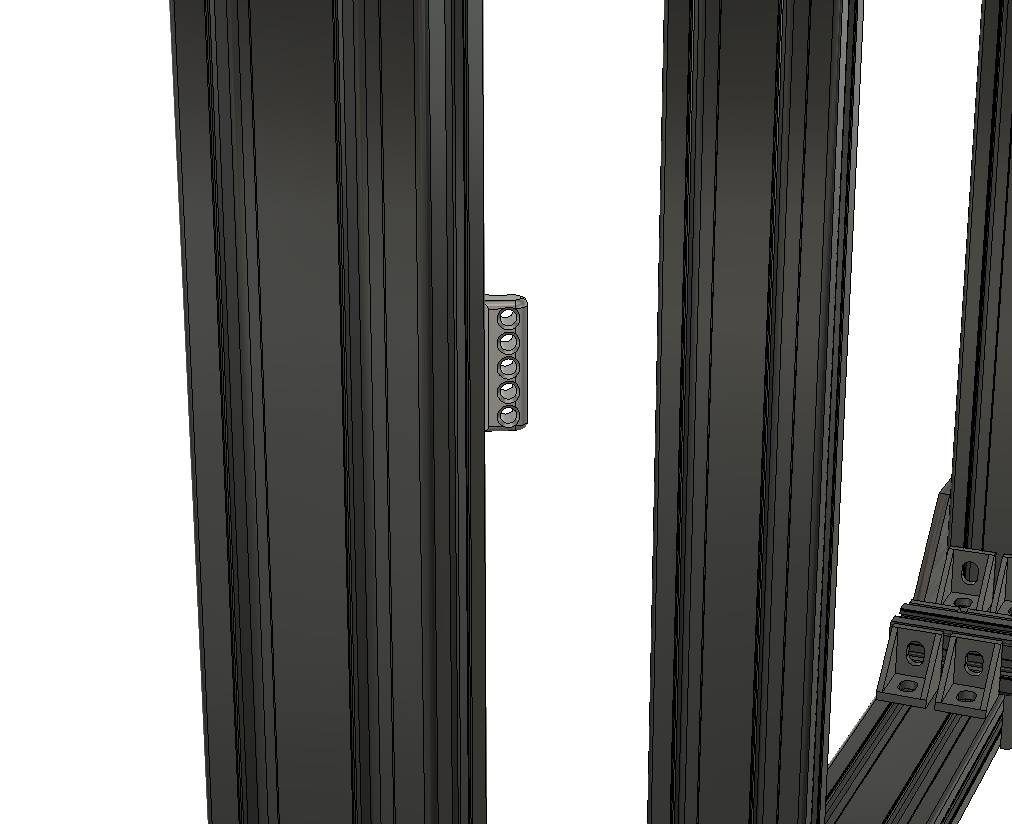

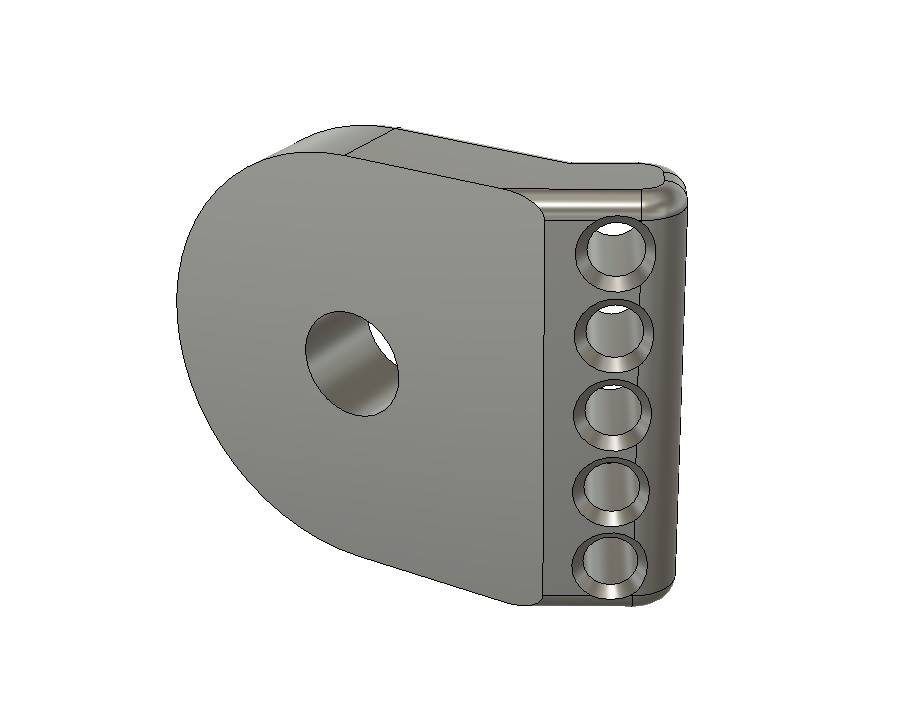

  • Install the "Front Panel optic cable indicators" part using an M5 screw and T-nut, and slide the cable ends into the holes of the panel.

Please note

The files I provided are more of a concept version. You can make even better front panels with text (just an idea) or route the cables inside the front panels. After getting some feedback from you, I will add it to the project.

You are more than welcome to post your remix of this concept.

Note: the files are licensed under the Creative Commons - Attribution - Non-Commercial - Share Alike license.
